Top Loading High Temperature Lab Muffle Furnace 1200C / 1400C / 1700C Vacuum Crucible Furnace

Name: Top Loading High Temperature Lab Muffle Furnace 1200C 1400C 1700C Vacuum Crucible Furnace
Brand: Brother Furnace
Price: 1 USD

Brand Name : Brother Furnace

Model Number : BR / XD

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Sets per month

Delivery Time : 7-30 Working days

Packaging Details : Strong wooden box for global shipping

MAX WORKING TEMPERATURE : up to 1700℃

Type : 1200℃, 1400℃, 1700℃

VOLUME : As Per Your Order

HEATING ELEMENT : Heating wire

FURNACE CHAMBER : Alumina Ceramic Fiber

TEMPERATURE CONTROL : 50 Segments Programmable And PID Auto Control

VOTAGE : AC 110V/220v 50/60 Hz

MAX. HEATING RATE : 20°C /min

TEMPERATURE ACCURACY : ±1℃

TEMPERATURE UNIFORMITY : ±5℃

Application : Tod Loading

Vacuum : -0.1Mpa (Optional)

Contact Now

High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top Loading Vacuum Crucible Furnace

The vacuum system for top loading muffle furnace is optional (-0.1Mpa)

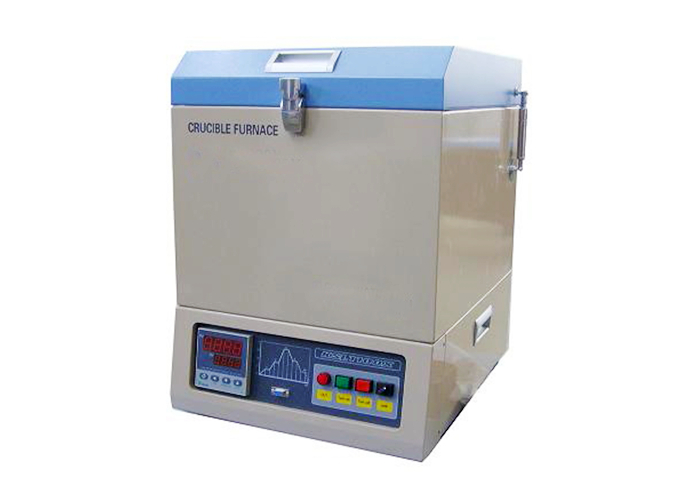

Top Loading High Temperature Lab Muffle Furnace 1200C / 1400C / 1700C Vacuum Crucible Furnace

Brother High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top Loading Crucible Furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace has big volume, mainly used for production enterprises for the sintering, melting, annealing, etc.

Type: 1200℃ 1400℃ 1700℃
Furnace chamber: Top Loading
Volume: as per your order
Super heating element. (different type, different heater)
Excellent Ceramic fiber chamber
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

Standard Spares:

High temperature gloves
Crucible clip
Operation Manual

Optional Spares:

7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture
Alumina crucible

Standard Chamber Size

Dia240 x H220mm

Dia40 x H300mm

Dia60 x H300mm

Dia80 x H300mm

Dia100 x H300mm

Dia120 x H300mm

Dia150 x H200mm

Note: Chamber size can be customized
